High-performance shared storage for media workflows that allow your team to collaborate with maximum ease and efficiency.

MediaVault

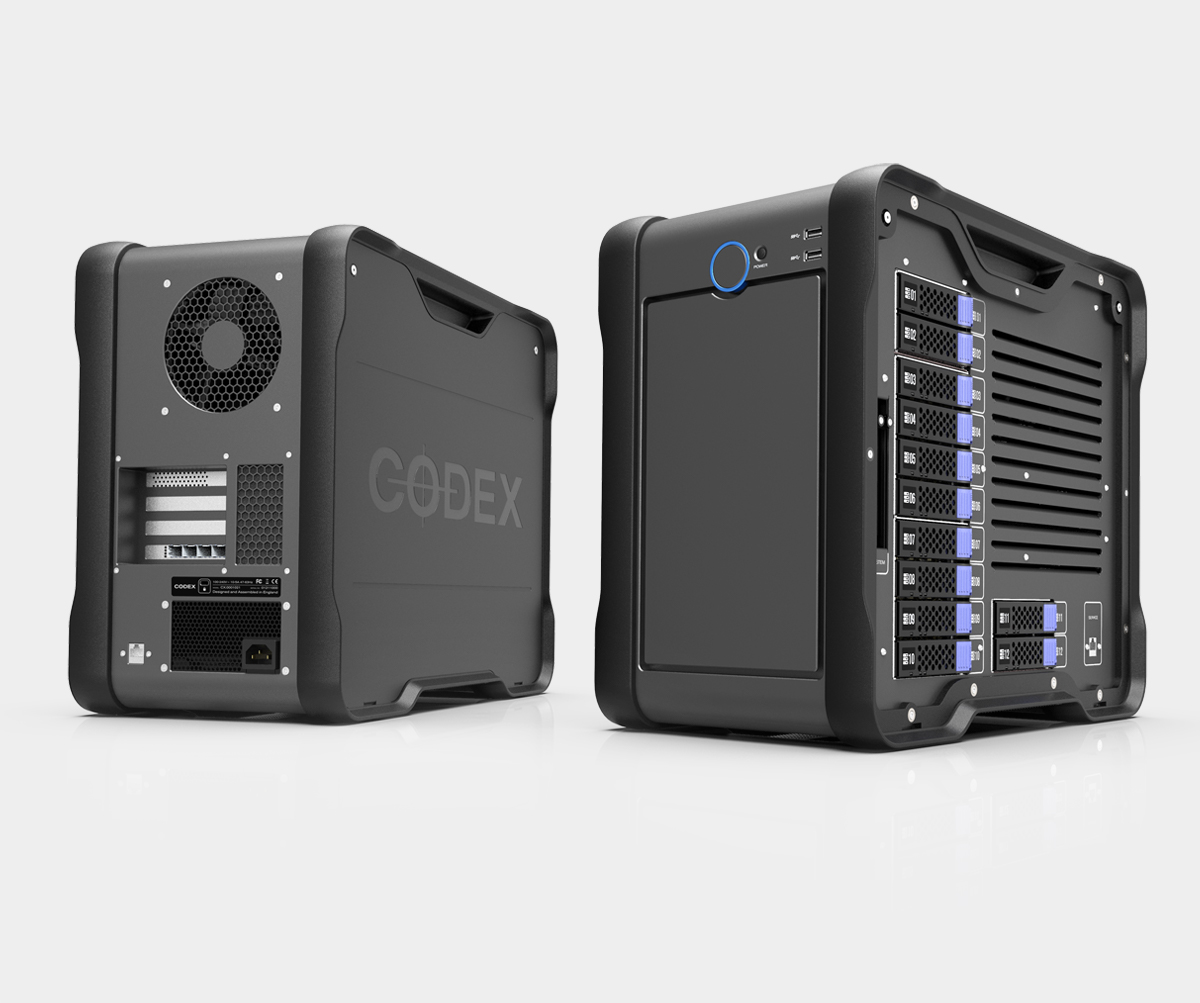

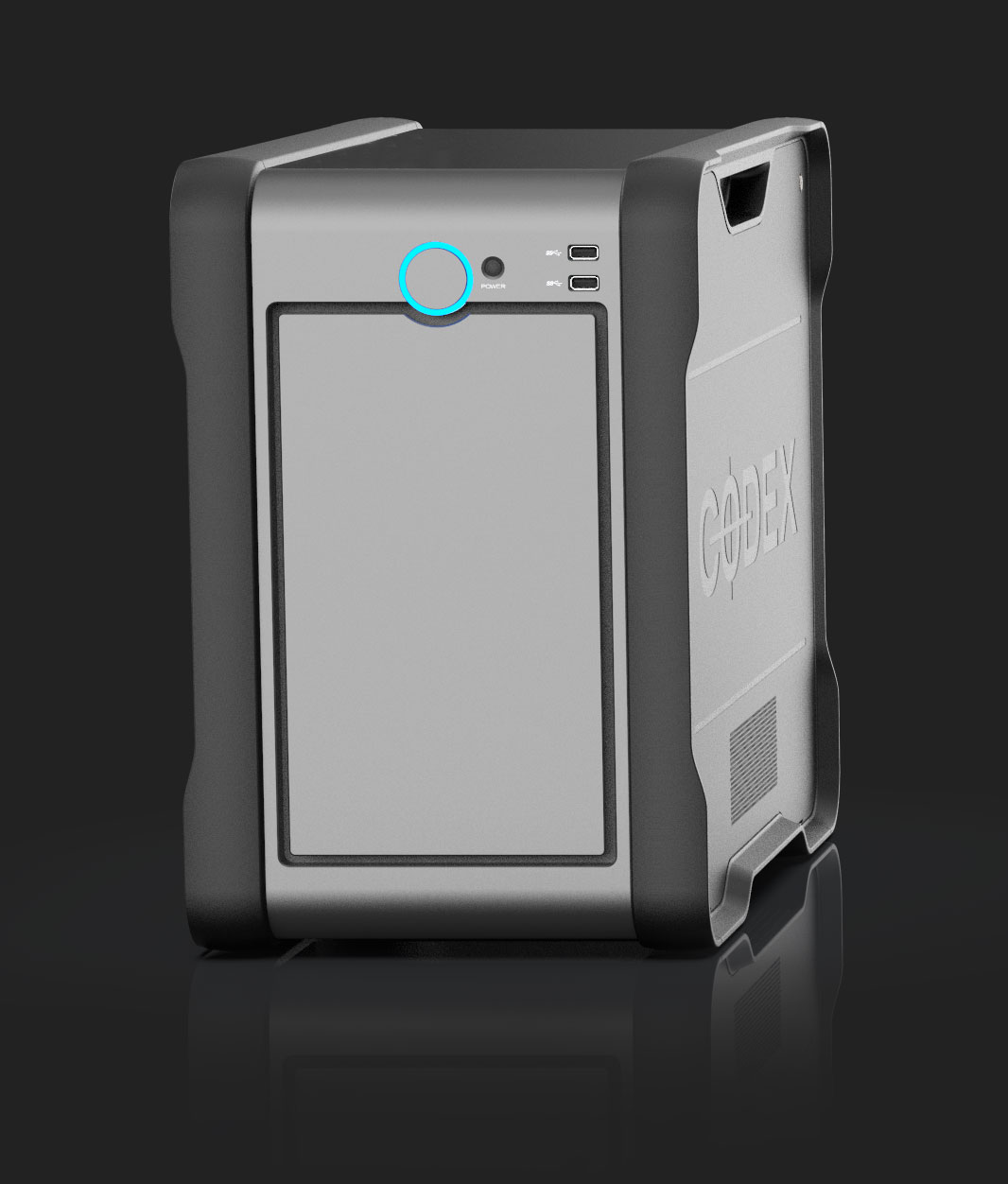

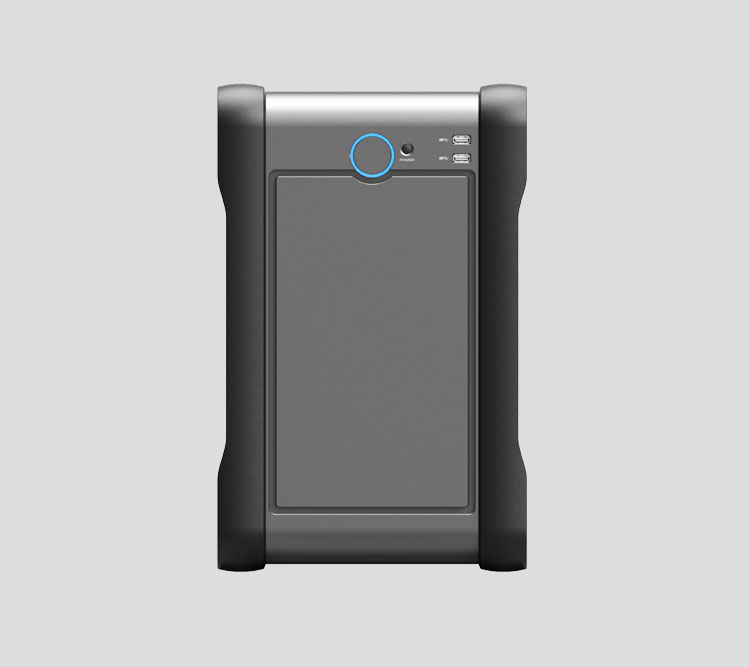

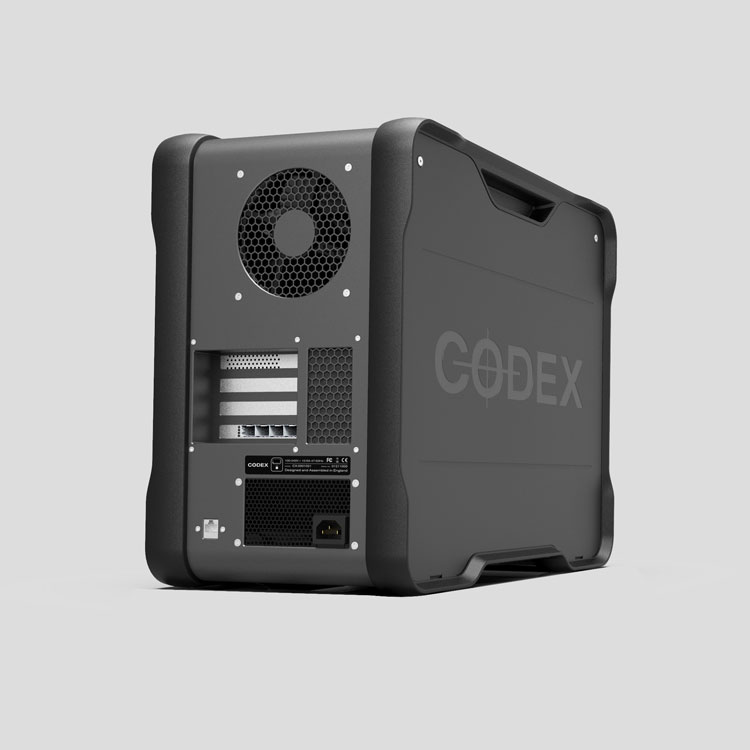

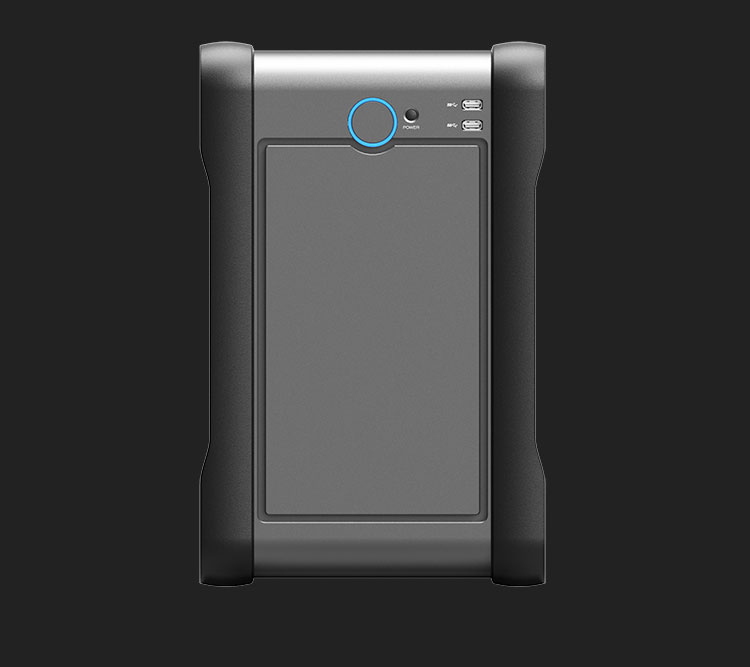

D1200

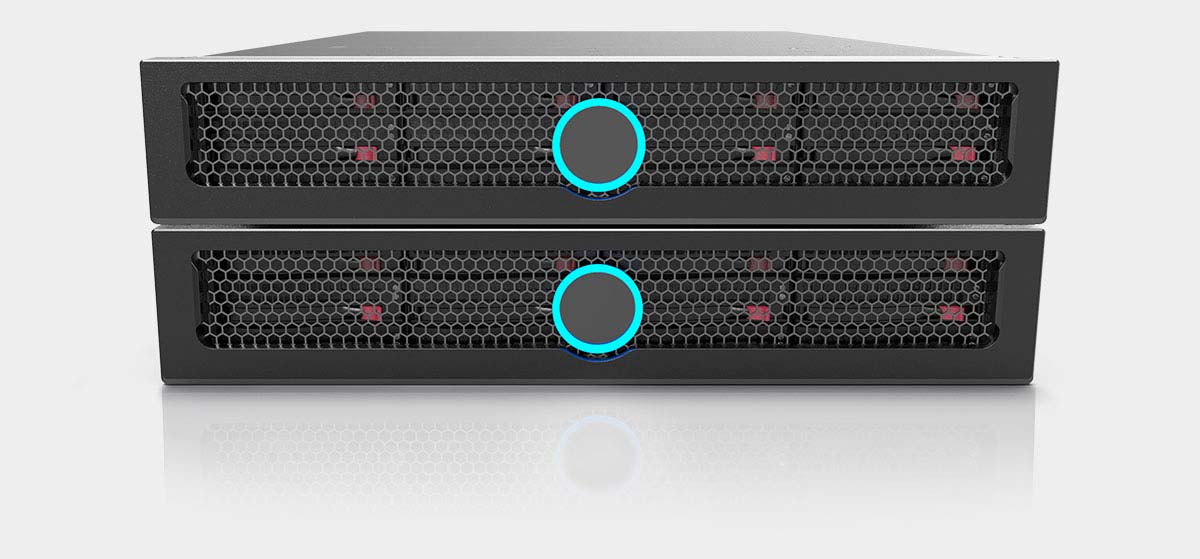

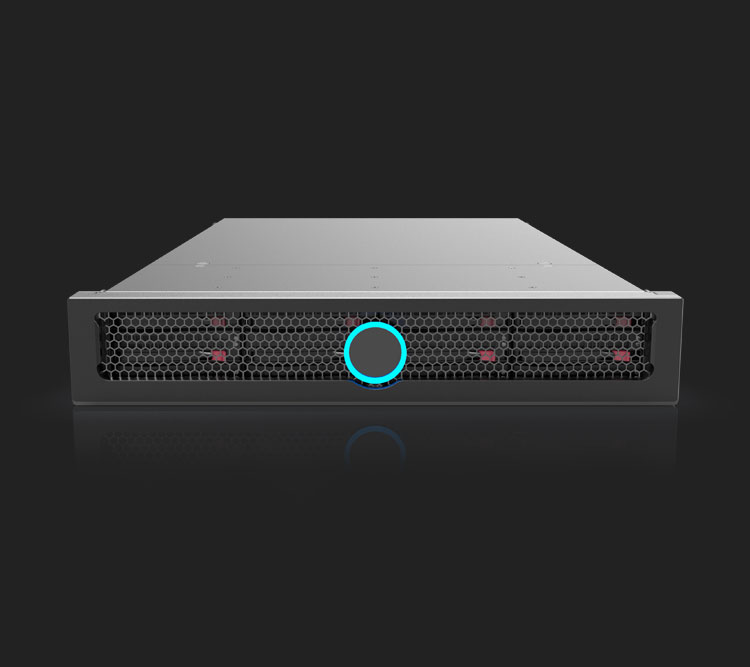

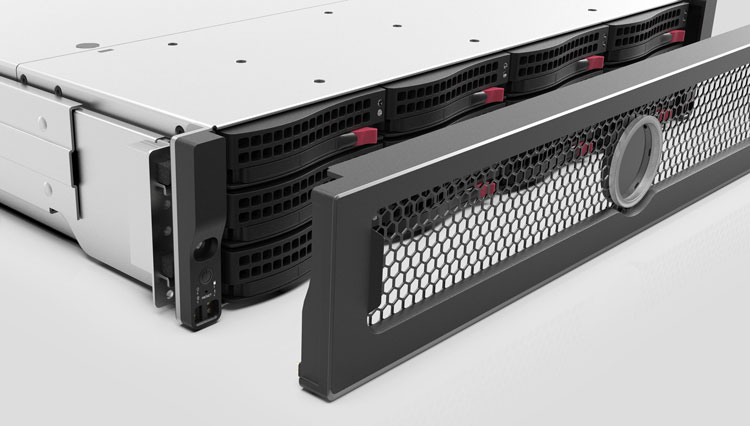

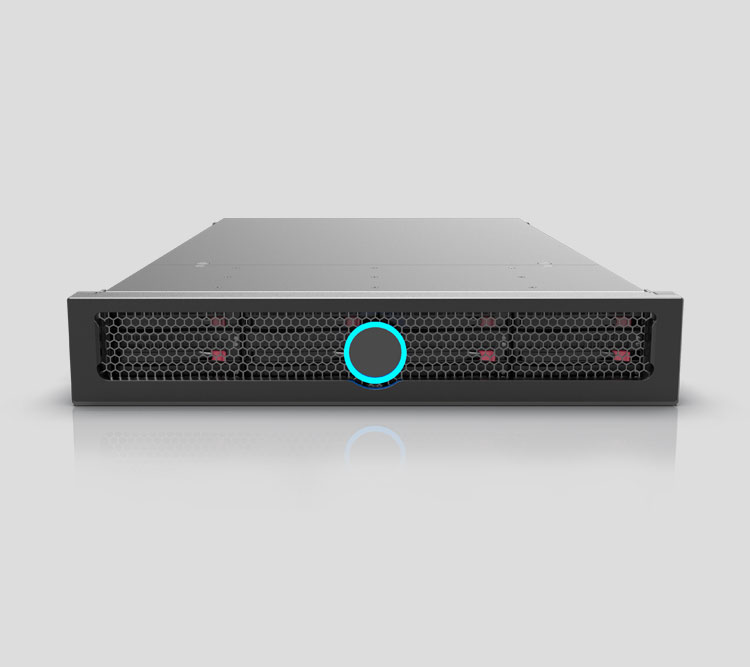

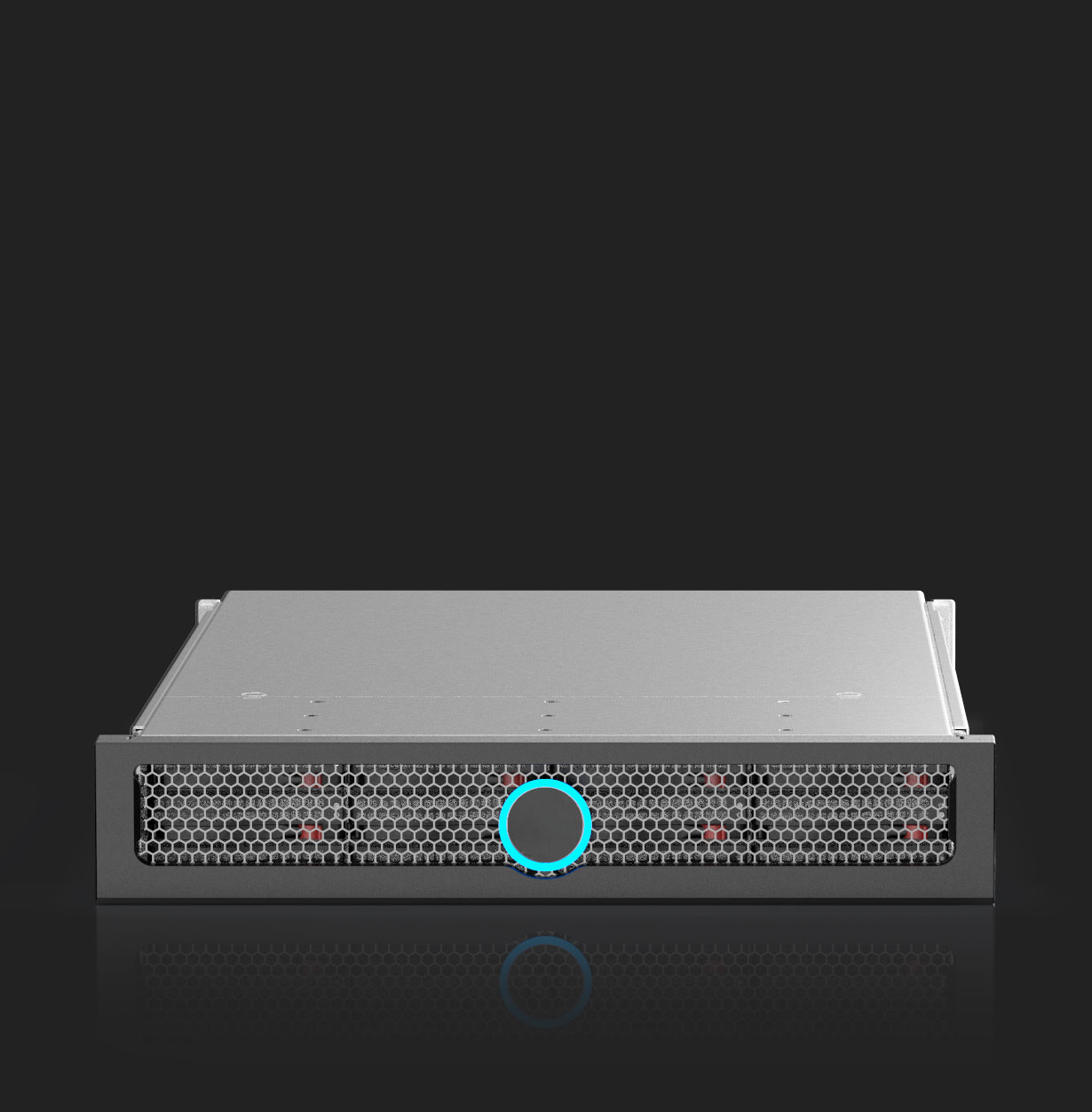

R1200

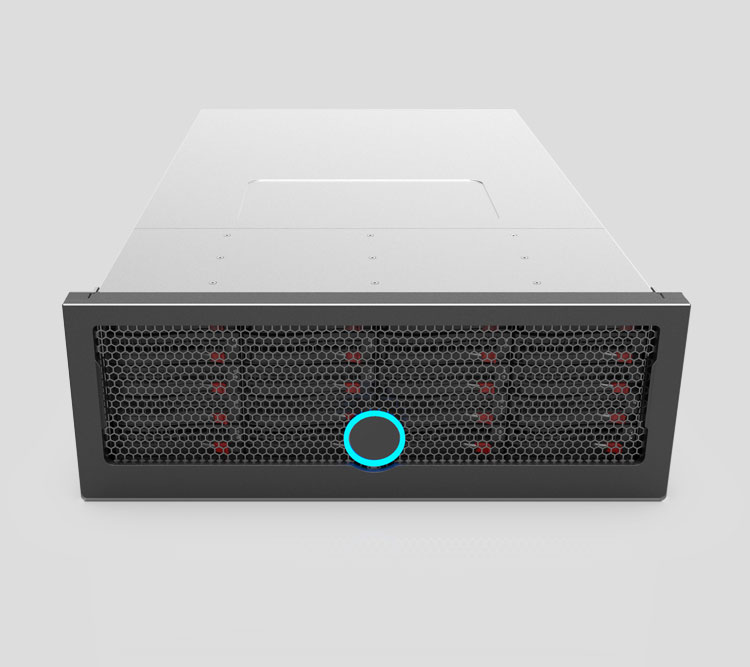

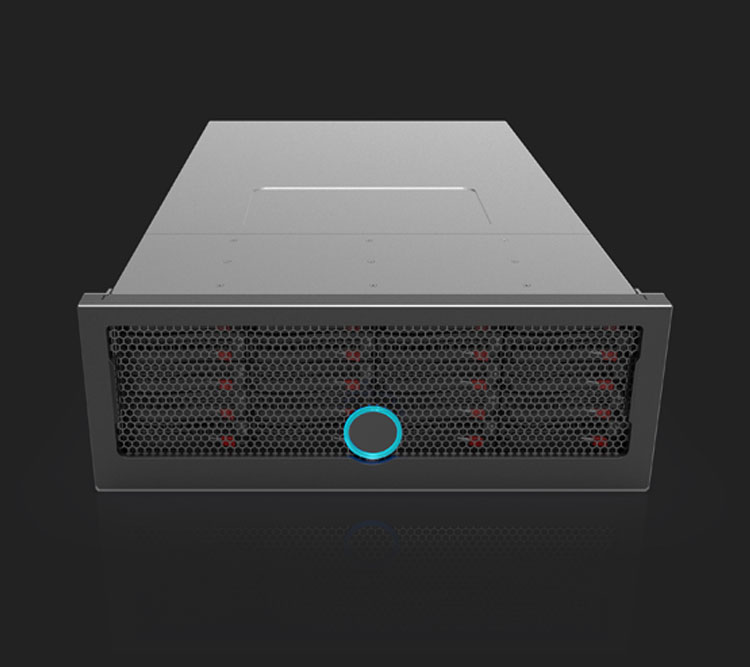

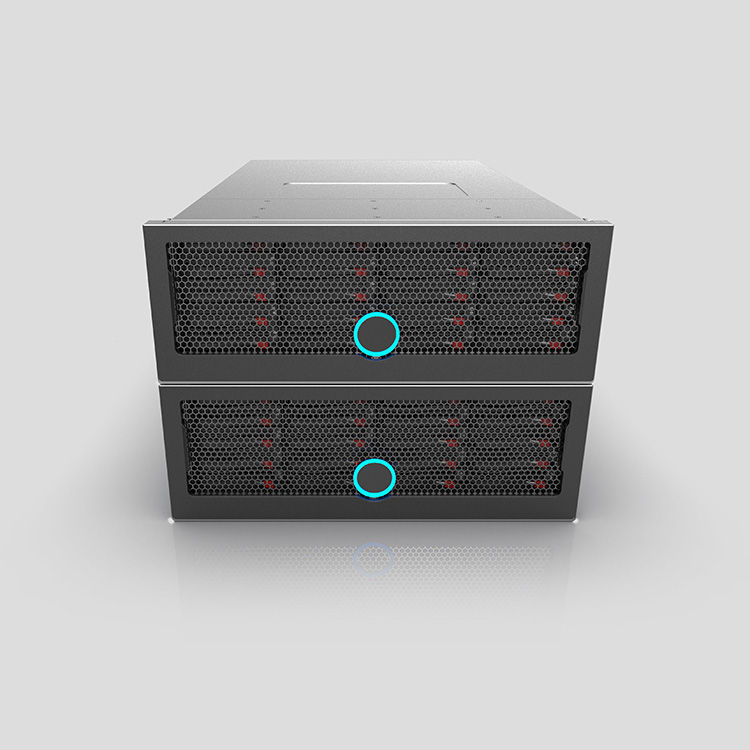

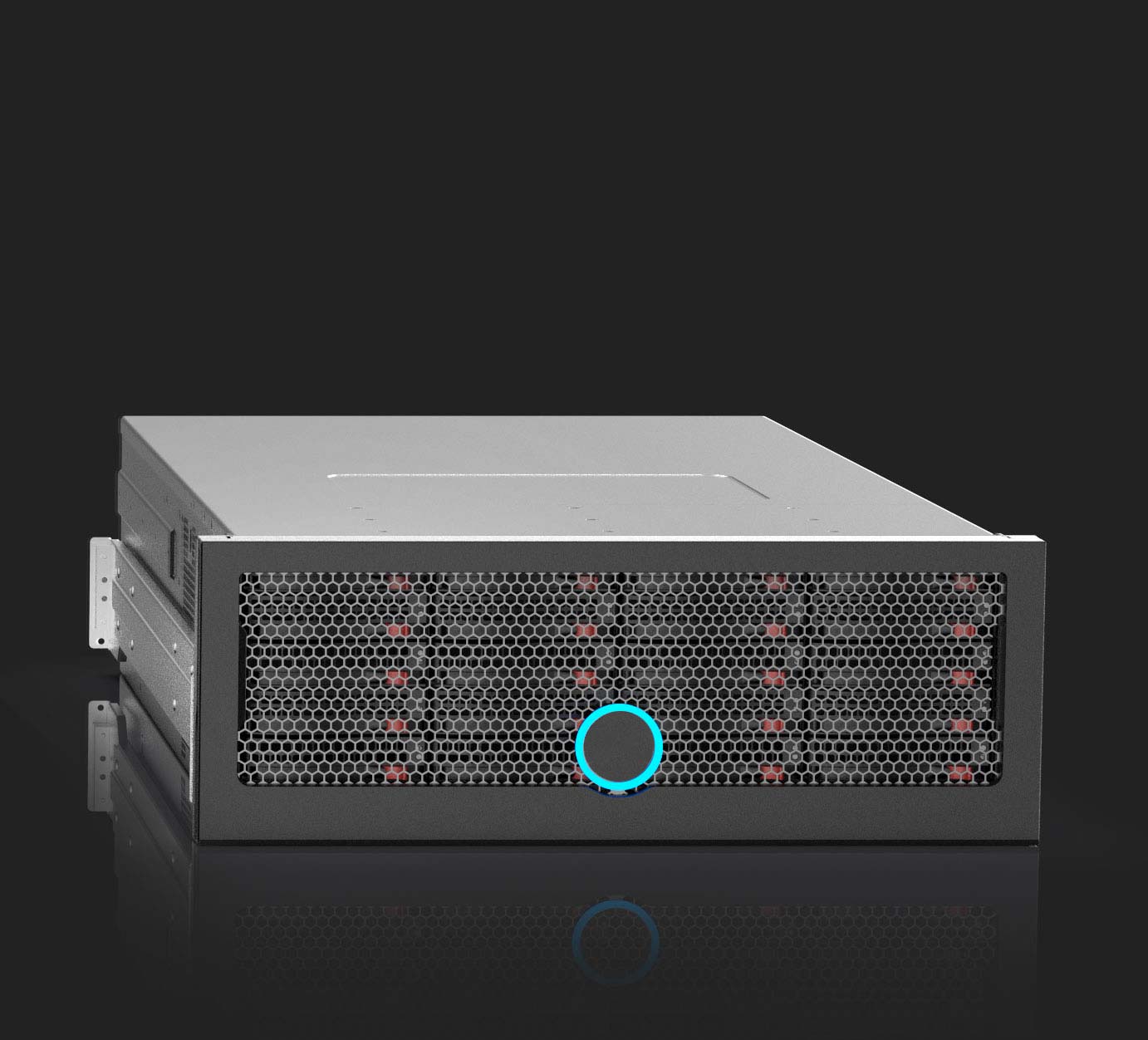

R3600
<
>
DIRECT CONNECT 4 USERS OVER 10GBE
12 DISKS FOR UP TO 168TB
ADDITIONAL CAPACITIES & NETWORKING OPTIONS AVAILABLE
DIRECT CONNECT 6 USERS OVER 10GBE
12 DISKS FOR UP TO 168TB
ADDITIONAL CAPACITIES & NETWORKING OPTIONS AVAILABLE
DIRECT CONNECT 6 USERS OVER 10GBE
36 DISKS FOR UP TO 504TB
ADDITIONAL CAPACITIES & NETWORKING OPTIONS AVAILABLE
Bring Your Team Together

At the centre of your workflow, MediaVault delivers what you demand - performance that is sustained, shared, and scalable across different production departments.

D1200
R1200
R3600
ON-SET
DAILIES
BTS
MARKETING
EDITORIAL
ARCHIVING
VFX
NEAR-SET
ASSET
MANAGEMENT
PROJECT
MANAGEMENT
VFX EDITORIAL
POST
PRODUCTION
ON PREMISE
ARCHIVAL
POST
PRODUCTION
DI FINISHING
VFX
AUTOMATION
EDGE TO
CLOUD
FINAL COLOR
DATA CENTERS
In the Field

Learn how MediaVault is helping our customers to realise their creative vision.

Taking center stage on a southern gothic tale
Bringing efficiency to collaborative design
Approaching a
DYNAMIC World
Professional Networking
D1200
R1200
R3600

With four 10GbE ports as standard, and options to add four more or even additional 25/50/100GbE ports, MediaVault can be configured to fit seamlessly into any network infrastructure.

With six 10GbE ports as standard, and options to add four more or even additional 25/50/100GbE ports, MediaVault can be configured to fit seamlessly into any network infrastructure.

With six 10GbE ports as standard, and options to add four more or even additional 25/50/100GbE ports, MediaVault can be configured to fit seamlessly into any network infrastructure.

4x
6x
10
GbE
+ OPTIONAL
0
GbE
0
GbE
0
GbE
0
GbE
Reliability & Peace of Mind

MediaVault ships with Enterprise grade disks for maximum reliability, and each disk is tested to ensure it meets our exacting standards for performance.

Dual redundant power supplies in the R1200 and R3600 ensure no downtime if a replacement is ever required.

750W
PSU
1200W
DUAL PSU
1200W
DUAL PSU
MediaVault Capacity
D1200
R1200
R3600
0TB
0TB
0TB
0TB
0TB
0TB
0TB
0TB

The 12 disks can be configured with a total capacity of 72TB, 120TB, 144TB, or 168TB, to handle projects of any size.

The 12 disks can be configured with a total capacity of 72TB, 120TB, 144TB, or 168TB, to handle projects of any size.

The 36 disks can be configured with a total capacity of 216TB, 360TB, 432TB, or 504TB, to handle projects of any size.

RAID Protection & Efficiency

Using a software based RAID with 2-disk redundancy, MediaVault provides maximal storage capacity without compromising on data security.

Using a software based RAID with 2-disk redundancy, MediaVault provides maximal storage capacity without compromising on data security.

Using a software based RAID with 6-disk redundancy, MediaVault provides maximal storage capacity without compromising on data security.

Performance

Stream files can be read at up to 1000 MB/s over a 10GbE network connection, meaning multi-user 4K workflows are possible – 4 clients can simultaneously read ProRes 4444 files at 4K resolution.

HD Streams
UHD Streams
*Based on 10GbE connection and aggregate read speed of 930 MB/s
Cost Effective

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

+
192
GB RAM
Powerful
Architecture

Intel Xeon processor and 128GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Dual Intel Xeon processors and 192GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Dual Intel Xeon processors and 192GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Ease of
Management

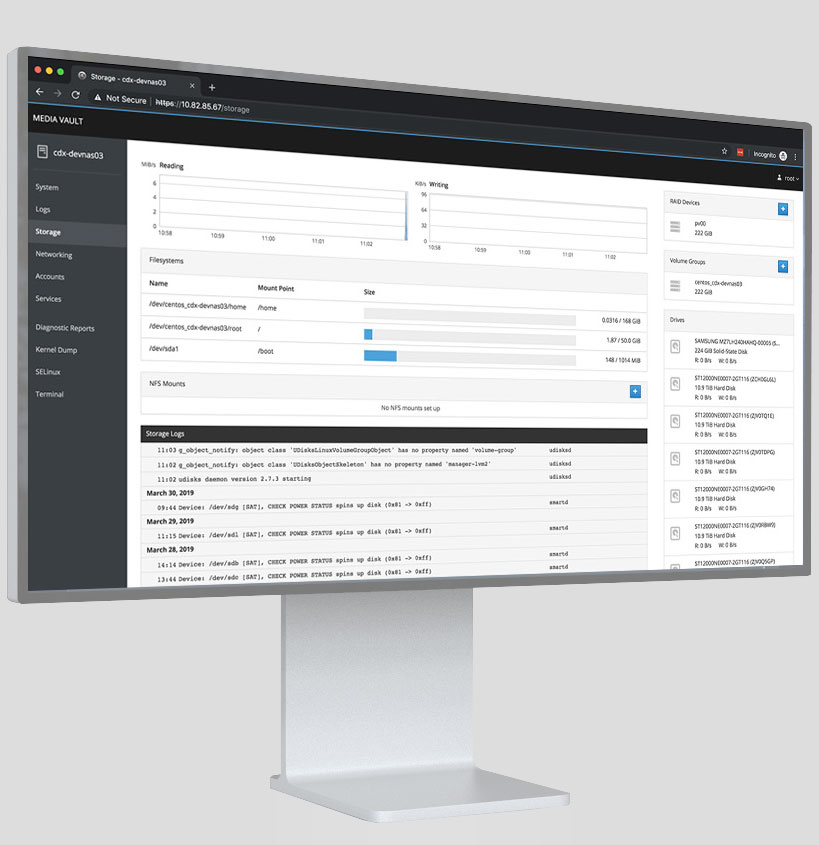

The simple, intuitive browser-based interface is where you can monitor system status and perform tasks such as managing user accounts and filesystems.

Cost Effective

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

Collaborative workflows save time and money, and MediaVault delivers exceptional value for secure, high performance shared storage, whatever the capacity.

+
192
GB RAM
Powerful
Architecture

Intel Xeon processor and 128GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Dual Intel Xeon processors and 192GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Dual Intel Xeon processors and 192GB of DDR4 RAM mean the MediaVault is capable of handling demanding workloads.

Ease of
Management

The simple, intuitive browser-based interface is where you can monitor system status and perform tasks such as managing user accounts and filesystems.

MediaVault + Your Workflow Tools

As a shared storage solution for media and entertainment workflows, MediaVault supports a range of professional applications including Premiere Pro, DaVinci Resolve Studio, Avid Media Composer, Final Cut Pro X, and Kyno.

Heritage

CODEX has been designing and manufacturing award-winning hardware for professional film makers for 15 years. We understand the daily demands and rigours, and our customers trust our equipment to provide the highest levels of performance and reliability.

Heritage

CODEX has been designing and manufacturing award-winning hardware for professional film makers for 15 years. We understand the daily demands and rigours, and our customers trust our equipment to provide the highest levels of performance and reliability.

Technical

How it works, how it's built, how it's a perfect fit.

D1200 R1200
R1200
R3600
Technical

How it works, how it's built, how it's a perfect fit.

R1200
Frequently Asked Questions

Resources to answer common questions or issues. If you can't find an answer here please contact Support.

FAQs
  • What storage capacities is MediaVault available with? D1200 and R1200 models - 72TB, 120TB, 144TB, or 168TB.
    R3600 model - 216TB, 360TB, 432TB, or 504TB.
  • What network connectivity options does MediaVault provide? Quad 10GbE, with options for an additional quad 10GbE card, or cards that provide 25 / 40 / 50 / 100 GbE ports.
  • What file system does MediaVault utilize? ZFS.
  • What Operating System does the MediaVault utilize? CodexOS
  • What client Operating Systems does MediaVault support? Mac/Windows/Linux.
  • What redundancy does MediaVault provide? D1200 and R1200 models - 2 disk redundancy.
    R3600 models - 6 disk redundancy.
    R1200 and R3600 models - dual redundant power supplies.
  • What Networking protocols does MediaVault support? SMB.
  • Does MediaVault provide a Web GUI? Yes, MediaVault has a remote monitoring Web GUI for administration.
  • Where can I learn more about the pricing and configuration options? Contact sales@codex.online or sign-up for notifications.
  • How much does MediaVault weigh? When fitted with 12TB HDD:
    D1200 - 34kg
    R1200 - 27.7kg
    R3600 - 46.4kg
