Technical

How it works, how it's built, how it's a perfect fit.

D1200
R1200
R3600

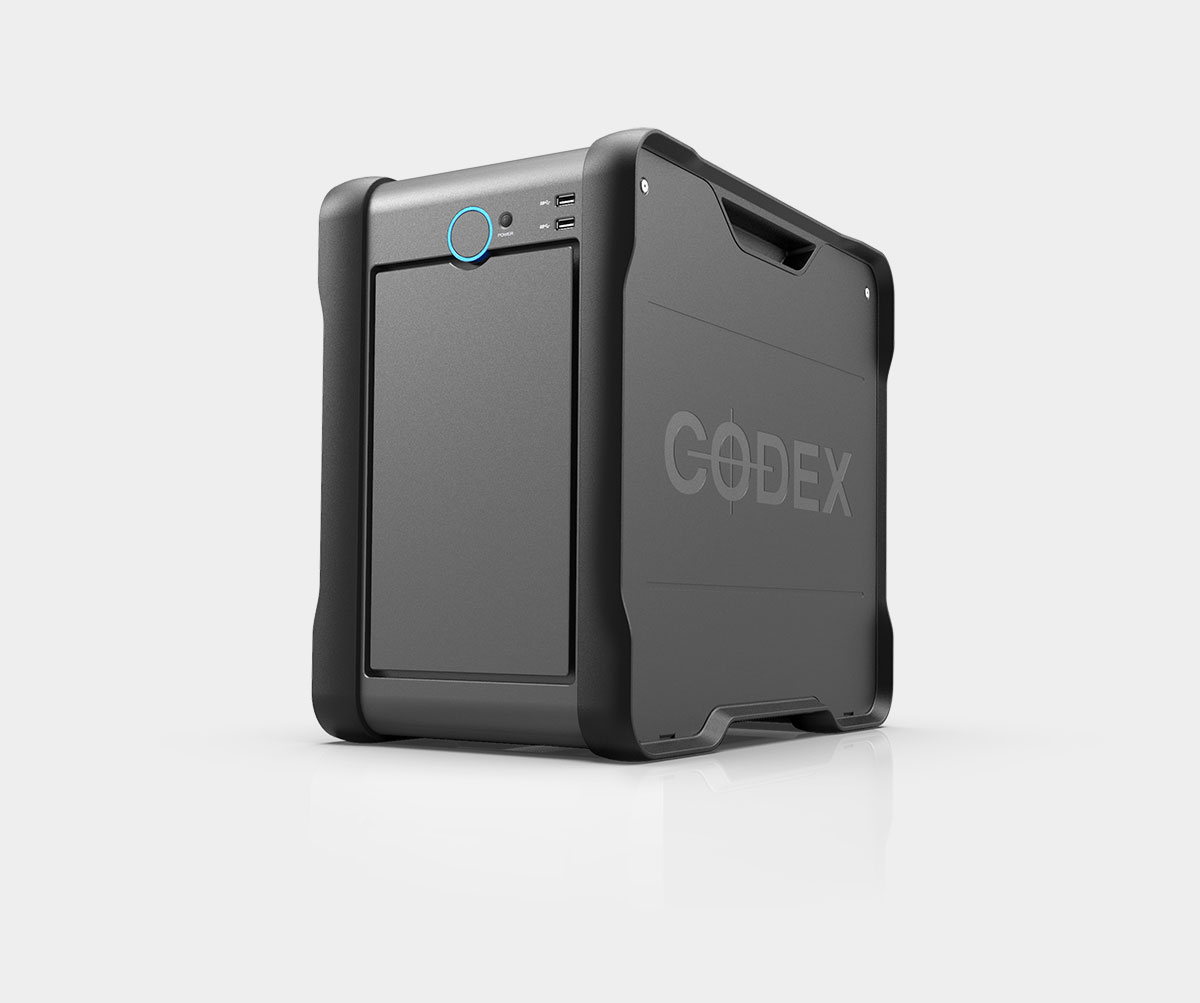

12 x 3.5" Enterprise SAS HDD Storage Drives
Up to 168TB Capacity
2 x 2.5" Enterprise SATA3 SSD System Drives with Power Loss Protection
Up to 1,000MB/s write, Up to 900MB/s read (based on a 10GbE connection)
2-Drive Parity (standard configuration)
Intel Xeon 4208 Silver Processor 2.10GHz
128GB DDR4 ECC
4 x 10Gbps BASE-T (RJ45) in standard configuration
Additional 4 x 10Gbps BASE-T (RJ45) (optional)
25/50/100Gbps single or dual port card (optional)
750W Power Supply
Browser based user interface
SMB Protocol (Supported by macOS, Windows and Linux clients)
Dimensions 15.8 x 10 x 18in (400 x 255 x 460mm)

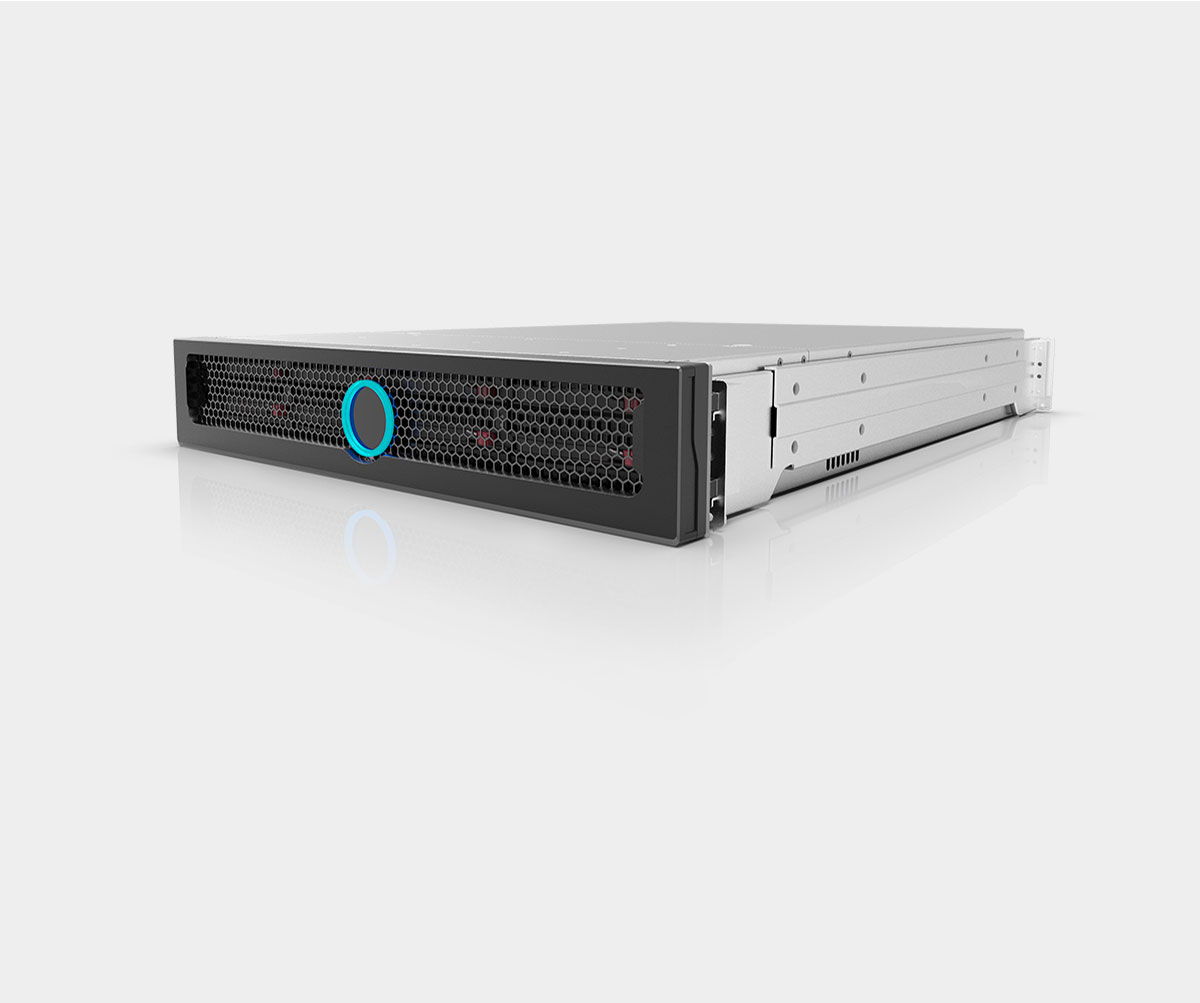

12 x 3.5" Enterprise SAS HDD Storage Drives
Up to 168TB Capacity
2 x 2.5" Enterprise SATA3 SSD System Drives with Power Loss Protection
Up to 1,000MB/s write, Up to 900MB/s read (based on a 10GbE connection)
2-Drive Parity (standard configuration)
Dual Intel Xeon 4208 Silver Processor 2.10GHz
192GB DDR4 ECC
6 x 10Gbps BASE-T (RJ45) in standard configuration
Additional 4 x 10Gbps BASE-T (RJ45) (optional)
25/50/100Gbps single or dual port card (optional)
1200W Dual Redundant Power Supply
Browser based user interface
SMB Protocol (Supported by macOS, Windows and Linux clients)
Dimensions 3.5 x 19 x 27in (89 x 483 x 686mm)

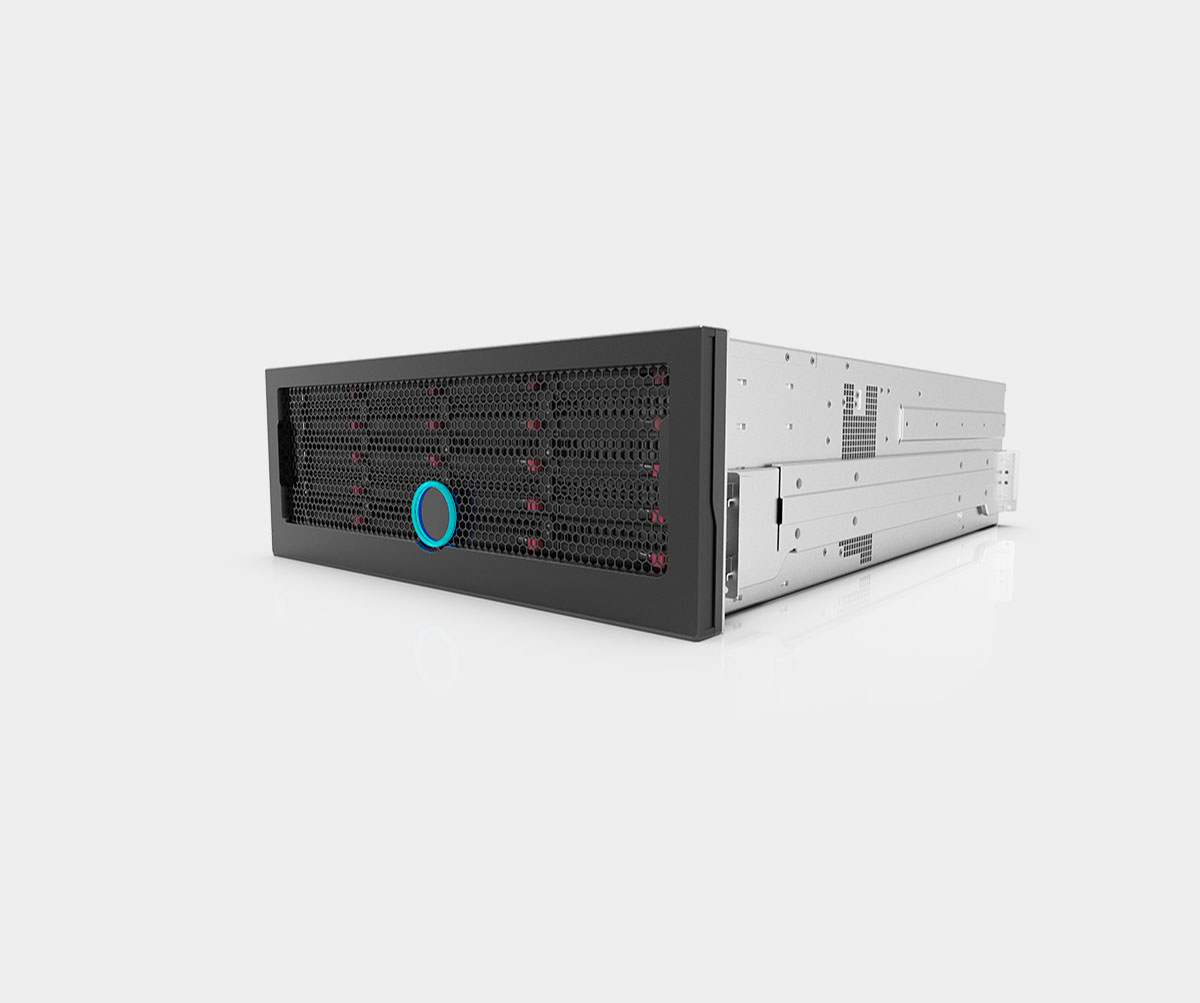

36 x 3.5" Enterprise SAS HDD Storage Drives
Up to 504TB Capacity
2 x 2.5" Enterprise SATA3 SSD System Drives with Power Loss Protection
Up to 1,000MB/s write, Up to 900MB/s read (based on a 10GbE connection)
6-Drive Parity (standard configuration)
Dual Intel Xeon 4208 Silver Processor 2.10GHz
192GB DDR4 ECC
6 x 10Gbps BASE-T (RJ45) in standard configuration
Additional 4 x 10Gbps BASE-T (RJ45) (optional)
25/50/100Gbps single or dual port card (optional)
1200W Dual Redundant Power Supply
Browser based user interface
SMB Protocol (Supported by macOS, Windows and Linux clients)
Dimensions 7 x 19 x 27in (178 x 483 x 686mm)
